GPS Speed Gauge

This multifunctional gauge with a segment display is intended for use in the marine market in open boats. Based on the ViewLine housing concept, the cluster provides an ideal IP Protection Class, a modern appearance and high quality standards.

• Embedded GPS antenna
• Robust and flexible design for versatile applications
• CAN capability (NMEA 2000)
• Pointer for analog indication of Speed Over Ground (SOG)
• Programmable speed alarm
• Fixed segment LC display
• Flush mount possibility
• Front side protection rating IP67
• Compass for Course Over Ground (COG)
• Clock
• 110 mm Installation diameter
• 126 mm Outer diameter
• 50 mm Installation depth

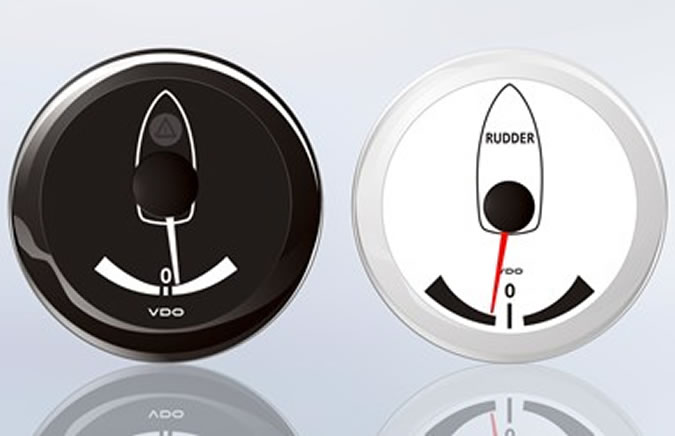

VDO Rudder Angle Marine Gauges

The ViewLine Rudder Angle Gauge for wheel-controlled yachts displays the current rudder position at all times. It is an important gauge for accident-free maneuvres in narrow waterways.

• 52 mm Range: 40° Port to 40° Starboard
• 85 mm Range: 45° Port to 45° Starboard
• 8 Pole Tyco / Hirschmann bush housing
• Operating voltage 8–32 V
• Current consumption < 150 mA
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm / 85 mm Installation diameter
• 50 mm Installation depth

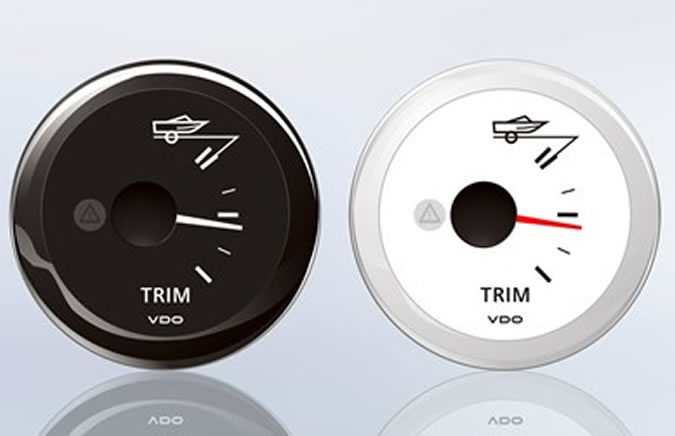

VDO ViewLine Trim Gauges

The ViewLine Trim Gauge provides information about the position of the engine in relation to the boat‘s stern.

The ViewLine Trim Gauge provides information about the position of the engine in relation to the boat‘s stern. In this way the skipper always knows whether the drive is in the raised or lowered position. He can also optimize the boat‘s trim.

• 8 Pole Tyco / Hirschmann MQS plug
• + / – 3.6° Angle degree accuracy over the entire display range
• Operating voltage 8 – 32 V
• Current consumption < 150 mA, with integrated warning light (LED)
• Input signal: standard Ω values
• 90° Display angle
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm Installation diameter
• 50 mm Installation depth

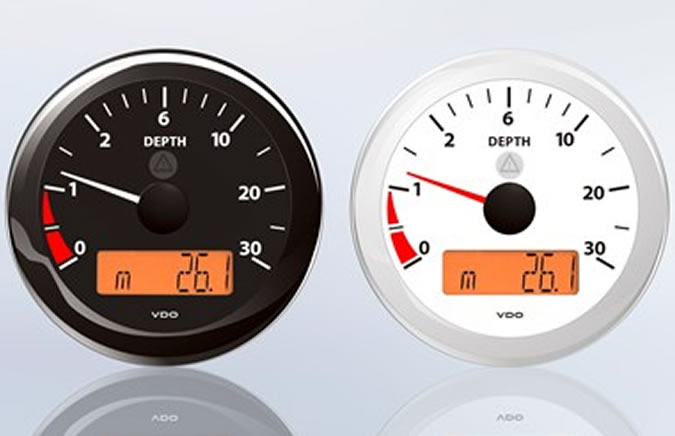

VDO ViewLine Depth Gauge

The ViewLine Depth Indicator measures water depth. The integrated alarm, which can be configured to the user’s specification, ensures safe passage through shallow waters.

• 8 and 14 Pole Tyco / Hirschmann bush housing
• Operating voltage 8 – 32 V
• Accuracy + / – 2.5 % (depending on the nature of the bottom and waterquality)
• Current consumption < 150 mA, with integrated warning light (LED)
• Warning light for configurable shallow water alarm
• NMEA input for active NMEA 0183 depth sensor
• Display with various functions, e. g., water temperature, depth, shallow water alarm, time, voltage, etc.
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 85 mm Installation diameter
• 50mm Installation depth


VDO ViewLine Depth Indicator Gauge

The ViewLine Depth Indicator measures water depth. The integrated alarm, which can be configured to the user’s specification, ensures safe passage through shallow waters.

• 8 and 14 Pole Tyco / Hirschmann bush housing
• Operating voltage 8 – 32 V
• Accuracy + / – 2.5 % (depending on the nature of the bottom and water quality)
• Current consumption < 150 mA, with integrated warning light (LED)
• Warning light for configurable shallow water alarm
• NMEA input for active NMEA 0183 depth sensor
• Display with various functions, e. g., water temperature, depth, shallow water alarm, time, voltage, etc.
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 85 mm Installation diameter
• 50mm Installation depth

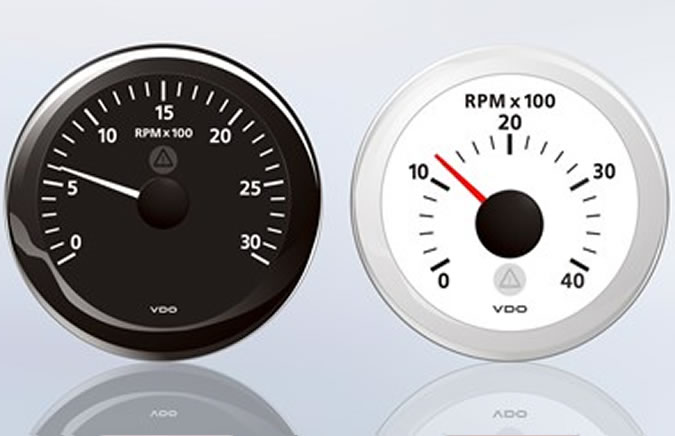

VDO Marine Tachometer

The ViewLine Rev Counter can be connected to conventional marine engines (no data bus).

• 8 and 14 Pole Tyco / Hirschmann bush housing
• Operating voltage 8 – 32 V
• Accuracy +/- 2.5 % of full scale reading
• < 175 mA current consumption with an LED warning light as standard
• Number of pulses programmable via dip switch or PC software (ViewLine Programming Tool)
• Anti-fog double lens
• Front side protection rating IP67
• 52 & 85 mm Installation diameter
• 50 mm Installation depth

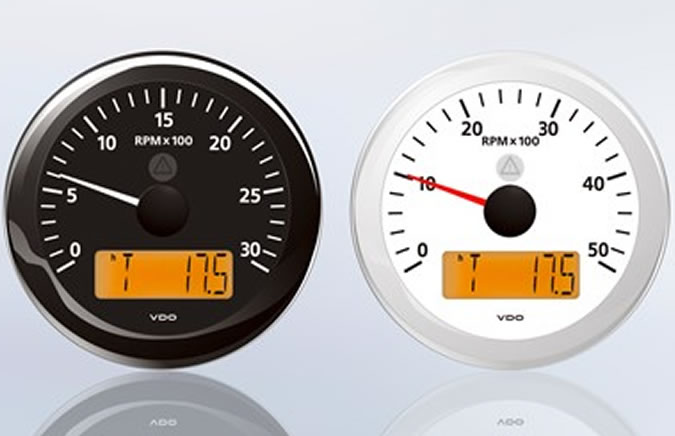

VDO Tachometer with LCD

The ViewLine Rev Counter with or without operating hours counter (OHC) can be connected to conventional marine engines (no data bus).

• Operating voltage 8 – 32 V
• Indication error < 2.5 % over the entire display range
• Current consumption < 175 mA, with warning light (LED)
• Output for acoustic alert (option)
• Various sensor inputs
• LC display size 37 mm x 11 mm
• Individually programmable display e. g., for clock, trip, odometer, etc. via externally switchable button or PC software (ViewLine programming tool)
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 85 mm Installation diameter
• 50 mm Installation depth
